Emerging Protocols in Machine Vision:
RoCE

A series, pt. 1

Machine vision is transforming countless industries by empowering machines to perceive, process, and interpret visual data. As technology speedily advances, exciting and emerging protocols are being developed and adopted from other industries to enhance the efficiency, accuracy, and integration of machine vision systems.

Similarly, machine vision systems are becoming increasingly vital across various sectors, including manufacturing, healthcare, security, and automotive. These systems rely heavily upon complex protocols for data acquisition, processing, and communication. Emerging protocols are addressing the challenges of scalability, real-time processing, and interoperability, rendering machine vision more robust, versatile and trusted.

In this first in a series of nine, we review RoCE, an emerging protocol that leverages Remote Direct Memory Access (RDMA) over Ethernet, allowing data to be transferred directly from the memory of one computer to another without involving the CPU, OS, or cache, thereby reducing latency and CPU overhead, offering significant advancements in data transfer efficiency, real-time communication, and interoperability.

The key features of RoCE are:

  • Enhanced Performance: RoCE’s high data transfer rates and low latency significantly enhance the performance of machine vision systems, enabling faster and more accurate image processing.
  • Reduced Latency: By minimizing latency, RoCE ensures real-time data processing and analysis, which is critical for applications requiring immediate response, such as automated inspection and robotic guidance. Bypassing the CPU for data transfer, RoCE significantly reduces latency, making it ideal for high-performance computing and data center applications.
  • Efficient CPU Utilization: Since data transfers are handled directly by the network interface card (NIC), the CPU is free to perform other tasks, improving overall system efficiency.
  • Lower Power Consumption: RoCE’s ability to offload data transfer tasks from the CPU reduces overall power consumption, making it ideal for energy-efficient machine vision systems.
  • Improved Scalability and Simplified Integration: RoCE supports scalable system designs, allowing for easy expansion and adaptation to growing performance requirements and increased data volumes in addition to compatibility with standard Ethernet infrastructure simplifies the integration process, reducing deployment time and costs.

In keeping with the above, there are two versions of RoCE. RoCE v1 runs over Layer 2 Ethernet, meaning it is not routable across subnets and is limited to a single Ethernet broadcast domain. RoCE v2, however, operates over Layer 3, allowing it to be routable across IP networks. This version provides more flexibility and scalability, making it suitable for larger and more complex network topologies.

The applications for RoCE are vast and include:

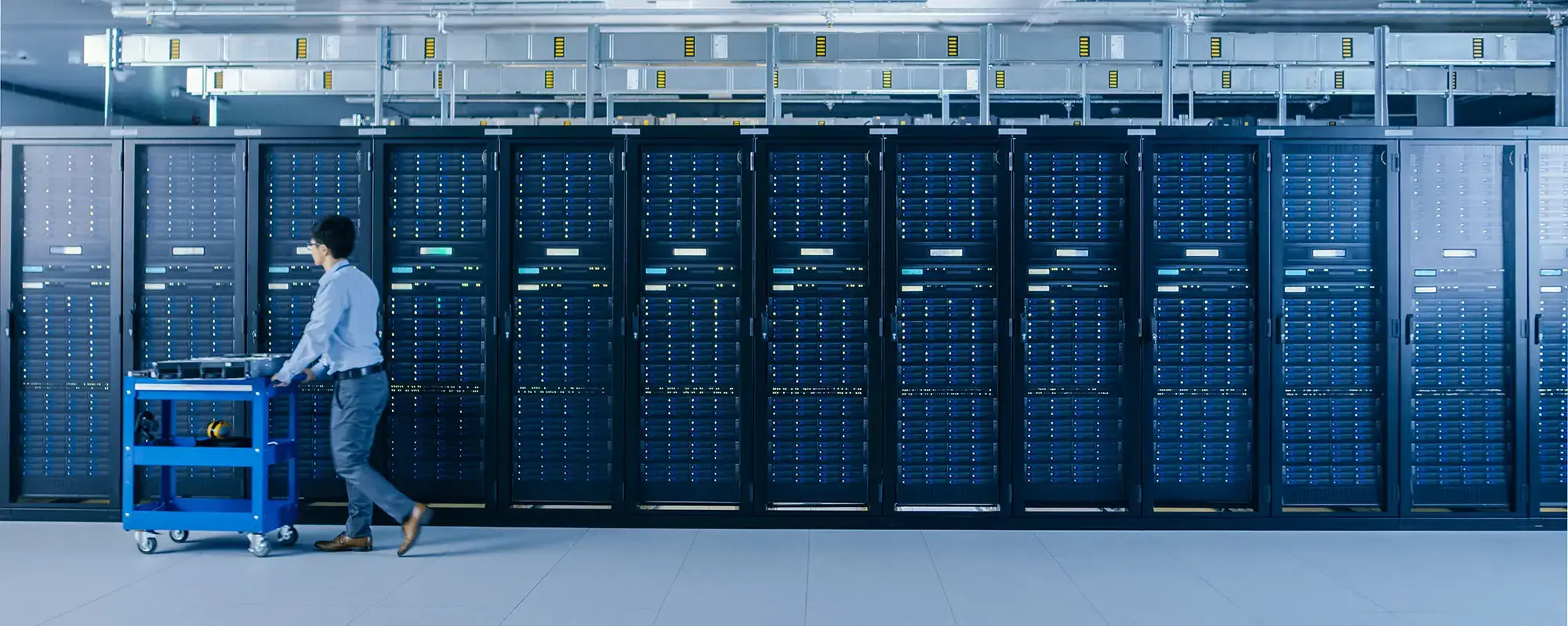

  • Data Centers: Enhance performance for storage and networking applications by reducing latency and increasing throughput.
  • High-Performance Computing (HPC): Improve the performance of HPC applications by enabling fast, low-latency data transfers.
  • Financial Services: Facilitate high-speed trading and other financial applications that require low-latency data transfers.
  • Machine Learning and AI: Support high-speed data transfers needed for training complex models and processing large datasets.

In terms of compliance and interoperability, RoCE is designed to work with standard Ethernet infrastructure and is compatible with various Ethernet and InfiniBand technologies, ensuring wide interoperability and ease of integration. Despite this, proper network configuration, including quality of service (QoS) settings, is crucial in ensuring optimal performance and minimizing congestion.

Hardware support requires NICs that support RDMA and RoCE protocols whereas software support may well require specific drivers and software stacks to enable RDMA capabilities on supported hardware.

Whilst there are challenges such as network congestion due to improper QoS configurations and compatible NICs, the benefits of RoCE are clear:

High performance and low latency while maintaining a reliable and scalable network environment
